shinken 1.2.4 on ubuntu desktop 12.10

26 feb 2013

copied from shinken-monitoring.org

motivation

need to get shinken-1.2.4 working on ubuntu desktop 12.10 and later i want to run it on a raspberry pi.

shinken installation

in general we follow the installation guide from [1]

  1. BUT first install libmysql-dev or you will hit issue [2][3]:

     apt-get install libmysqlclient-dev
 apt-get install python-dev
 apt-get install python-pip

    note: if you don’t install libmysqlclient-dev the pip installation of MySQL-python==1.2.4b2 will bail out with an error

  2. since the most recent MySQL-python has an issue with distribute, we downgrade it:

     pip install distribute==0.6.28
 pip install MySQL-python==1.2.4b2

    note: if you don’t install MySQL-python==1.2.4b2 then the shinken 1.2.4 installer might have a problem

     # pip install distribute==0.6.28
 Downloading/unpacking distribute==0.6.28
   Downloading distribute-0.6.28.tar.gz (627Kb): 627Kb downloaded
   Running setup.py egg_info for package distribute

 Installing collected packages: distribute
   Found existing installation: distribute 0.6.28dev-r0
     Uninstalling distribute:
       Successfully uninstalled distribute
   Running setup.py install for distribute
     Before install bootstrap.
     Scanning installed packages
     Setuptools installation detected at /usr/lib/python2.7/dist-packages
     Non-egg installation
     Removing elements out of the way...
     Already patched.
     /usr/lib/python2.7/dist-packages/setuptools.egg-info already patched.

     Installing easy_install script to /usr/local/bin
     Installing easy_install-2.7 script to /usr/local/bin
     After install bootstrap.
     Don't have permissions to write /usr/local/lib/python2.7/dist-packages/setuptools-0.6c11-py2.7.egg-info, skipping
     Creating /usr/local/lib/python2.7/dist-packages/setuptools-0.6c11-py2.7.egg-info
     Creating /usr/local/lib/python2.7/dist-packages/setuptools.pth
 Successfully installed distribute
 Cleaning up...

 #  pip install MySQL-python==1.2.4b2
 Downloading/unpacking MySQL-python==1.2.4b2
   Downloading MySQL-python-1.2.4b2.tar.gz (77Kb): 77Kb downloaded
   Running setup.py egg_info for package MySQL-python

 Installing collected packages: MySQL-python
   Running setup.py install for MySQL-python
     building '_mysql' extension
     gcc -pthread -fno-strict-aliasing -DNDEBUG -g -fwrapv -O2 -Wall -Wstrict-prototypes -fPIC -Dversion_info=(1,2,4,'beta',2) -D__version__=1.2.4b2 -I/usr/include/mysql -I/usr/include/python2.7 -c _mysql.c -o build/temp.linux-x86_64-2.7/_mysql.o -DBIG_JOINS=1 -fno-strict-aliasing -g
     In file included from _mysql.c:44:0:
     /usr/include/mysql/my_config.h:422:0: warning: "HAVE_WCSCOLL" redefined [enabled by default]
     In file included from /usr/include/python2.7/Python.h:8:0,
                      from _mysql.c:29:
     /usr/include/python2.7/pyconfig.h:890:0: note: this is the location of the previous definition
     gcc -pthread -shared -Wl,-O1 -Wl,-Bsymbolic-functions -Wl,-Bsymbolic-functions -Wl,-z,relro build/temp.linux-x86_64-2.7/_mysql.o -L/usr/lib/x86_64-linux-gnu -lmysqlclient_r -lpthread -lz -lm -lrt -ldl -o build/lib.linux-x86_64-2.7/_mysql.so

 Successfully installed MySQL-python
 Cleaning up...

  3. fixing the pnp4nagios from 2.17 to 2.18

    bugfix, see [6], for the (2.18 release). if we don’t updated from 2.17 to 2.18 our pnp4nagios will only produce an empty document and thus no RRD graphics.

     Bugfix: Blank screen on PHP 5.4 fixed

    get the source of shinken:

     wget http://www.shinken-monitoring.org/pub/shinken-1.2.4.tar.gz
 tar xfz shinken-1.2.4.tar.gz
 cd shinken-1.2.4

    now change install.d/shinken.conf:

     install.d/shinken.conf -> export PNPRELEASE="17"

    to

     install.d/shinken.conf -> export PNPRELEASE="18"

    for more details how i learned about this issue, see [[shinken_1.2.4_on_ubuntu_desktop_12.10/#index1h2]]

  4. execute the installation

     ./install -i
 ./install -p nagios-plugins
 ./install -p check_mem
 ./install -p manubulon
 ./install -p check_netint
 ./install -a pnp4nagios

    and then restart the services

      /etc/init.d/shinken restart
  /etc/init.d/npcd restart

    some parts of that script seem to run forever so be patient

     # ./install -i
 +--------------------------------------------------------------------------------
 | Verifying compatible distros
 +--------------------------------------------------------------------------------
  > Found DEBIAN (Ubuntu 12 x86_64)
  > Version checking for Ubuntu is not needed
 +--------------------------------------------------------------------------------
 | Checking for existing installation
 +--------------------------------------------------------------------------------
 +--------------------------------------------------------------------------------
 | Checking prerequisites
 +--------------------------------------------------------------------------------
  > Checking for wget: OK
  > Checking for sed: OK
  > Checking for gawk: NOT FOUND. Installing it!
  > Checking for grep: OK
  > Checking for python: OK
  > Checking for bash: OK
  > Checking for sudo: OK
  > Installing build-essential libperl-dev python-setuptools libsqlite3-dev python-dev pyro sqlite3 nmap unzip libmysqlclient-dev python-ldap libevent-dev python-paste
  > Module paramiko (paramiko) not found. Installing...
  > Module netifaces (netifaces) not found. Installing...
  > Module simplejson (simplejson) not found. Installing...
  > Module pysqlite found.
  > Module MySQL_python found.
  > Module pymongo (pymongo) not found. Installing...
  > Module kombu (kombu) not found. Installing...
 +--------------------------------------------------------------------------------
 | Creating user
 +--------------------------------------------------------------------------------
 +--------------------------------------------------------------------------------
 | Relocate source tree to /usr/local/shinken
 +--------------------------------------------------------------------------------
  > relocating macro /usr/local/shinken/install.d/tools/macros/enable_npcd.macro
  > relocating macro /usr/local/shinken/install.d/tools/macros/disable_npcd.macro
  > relocating macro /usr/local/shinken/install.d/tools/macros/set_webui_ouptput_length.macro
  > relocating macro /usr/local/shinken/install.d/tools/macros/enable_log_mongo.macro
  > relocating macro /usr/local/shinken/install.d/tools/macros/enable_retention.macro
  > relocating macro /usr/local/shinken/install.d/tools/macros/control_satelites.macro
  > relocating macro /usr/local/shinken/install.d/tools/macros/enable_retention_mongo.macro
  > relocate nagios plugin path
 +--------------------------------------------------------------------------------
 | Set some configuration directives
 +--------------------------------------------------------------------------------
  > Processing /usr/local/shinken/etc/brokerd.ini
  > Going to /usr/local/shinken
  > Setting workdir to /usr/local/shinken/var in /usr/local/shinken/etc/brokerd.ini
  > Setting user to shinken in /usr/local/shinken/etc/brokerd.ini
  > Setting shinken_user to shinken in /usr/local/shinken/etc/brokerd.ini
  > Setting group to shinken in /usr/local/shinken/etc/brokerd.ini
  > Setting shinken_group to shinken in /usr/local/shinken/etc/brokerd.ini
  > Processing /usr/local/shinken/etc/pollerd.ini
  > Going to /usr/local/shinken
  > Setting workdir to /usr/local/shinken/var in /usr/local/shinken/etc/pollerd.ini
  > Setting user to shinken in /usr/local/shinken/etc/pollerd.ini
  > Setting shinken_user to shinken in /usr/local/shinken/etc/pollerd.ini
  > Setting group to shinken in /usr/local/shinken/etc/pollerd.ini
  > Setting shinken_group to shinken in /usr/local/shinken/etc/pollerd.ini
  > Processing /usr/local/shinken/etc/reactionnerd.ini
  > Going to /usr/local/shinken
  > Setting workdir to /usr/local/shinken/var in /usr/local/shinken/etc/reactionnerd.ini
  > Setting user to shinken in /usr/local/shinken/etc/reactionnerd.ini
  > Setting shinken_user to shinken in /usr/local/shinken/etc/reactionnerd.ini
  > Setting group to shinken in /usr/local/shinken/etc/reactionnerd.ini
  > Setting shinken_group to shinken in /usr/local/shinken/etc/reactionnerd.ini
  > Processing /usr/local/shinken/etc/receiverd.ini
  > Going to /usr/local/shinken
  > Setting workdir to /usr/local/shinken/var in /usr/local/shinken/etc/receiverd.ini
  > Setting user to shinken in /usr/local/shinken/etc/receiverd.ini
  > Setting shinken_user to shinken in /usr/local/shinken/etc/receiverd.ini
  > Setting group to shinken in /usr/local/shinken/etc/receiverd.ini
  > Setting shinken_group to shinken in /usr/local/shinken/etc/receiverd.ini
  > Processing /usr/local/shinken/etc/schedulerd.ini
  > Going to /usr/local/shinken
  > Setting workdir to /usr/local/shinken/var in /usr/local/shinken/etc/schedulerd.ini
  > Setting user to shinken in /usr/local/shinken/etc/schedulerd.ini
  > Setting shinken_user to shinken in /usr/local/shinken/etc/schedulerd.ini
  > Setting group to shinken in /usr/local/shinken/etc/schedulerd.ini
  > Setting shinken_group to shinken in /usr/local/shinken/etc/schedulerd.ini
  > Processing /usr/local/shinken/etc/skonf.cfg
  > Going to /usr/local/shinken
  > Setting workdir to /usr/local/shinken/var in /usr/local/shinken/etc/skonf.cfg
  > Setting user to shinken in /usr/local/shinken/etc/skonf.cfg
  > Setting shinken_user to shinken in /usr/local/shinken/etc/skonf.cfg
  > Setting group to shinken in /usr/local/shinken/etc/skonf.cfg
  > Setting shinken_group to shinken in /usr/local/shinken/etc/skonf.cfg
  > Processing /usr/local/shinken/etc/nagios.cfg
  > Going to /usr/local/shinken
  > Setting workdir to /usr/local/shinken/var in /usr/local/shinken/etc/nagios.cfg
  > Setting shinken_user to shinken in /usr/local/shinken/etc/nagios.cfg
  > Setting shinken_group to shinken in /usr/local/shinken/etc/nagios.cfg
  > Setting local_log to /usr/local/shinken/var/arbiter.log in /usr/local/shinken/etc/nagios.cfg
  > Setting lock_file to /usr/local/shinken/var/arbiter.pid in /usr/local/shinken/etc/nagios.cfg
  > Enable retention for broker scheduler and arbiter
  > Installing startup scripts
  > Enabling Ubuntu startup script
 +--------------------------------------------------------------------------------
 | Install mongodb server
 +--------------------------------------------------------------------------------
  > repository configuration not found. Adding 10 gen repository
  > Installing mongodb server
 +--------------------------------------------------------------------------------
 | Applying various fixes
 +--------------------------------------------------------------------------------
  > updated configuration of module[3] passwd=/usr/local/shinken/etc/htpasswd.users updated configuration of module[3] passwd=/usr/local/shinken/etc/htpasswd.users
  > Make files permissions and owners good
  > Add Shinken entry for skonf in sudoers
 /tmp/sudoers.shinken: parsed OK
 /etc/sudoers.d/README: parsed OK
  > Starting shinken
 +------------------------------------------------------------------------------
 | Shinken is now installed on your server
 | The install location is: /usr/local/shinken
 | The configuration folder is: /usr/local/shinken/etc
 |
 | The Web Interface is available at: http://localhost:7767
 | The default credentials for the webui are admin/admin
 |
 | You can now learn how to configure shinken at: http://www.shinken-monitoring.org/wiki
 +------------------------------------------------------------------------------

 # ./install -p nagios-plugins
 > Found installation parameters
 --> ETC=/usr/local/shinken/etc
 --> VAR=/usr/local/shinken/var
 --> LIBEXEC=/usr/local/shinken/libexec
 --> TARGET=/usr/local/shinken
 > checking if shinken is installed in /usr/local/shinken
 +--------------------------------------------------------------------------------
 |Install nagios plugins
 +--------------------------------------------------------------------------------
 > Installing prerequisites
 > Getting nagios-plugins archive
 > Extract archive content
 > Configure source tree
 > Building ....
 > Installing

 # ./install -p check_mem
  > Found installation parameters
  --> ETC=/usr/local/shinken/etc
  --> VAR=/usr/local/shinken/var
  --> LIBEXEC=/usr/local/shinken/libexec
  --> TARGET=/usr/local/shinken
  > checking if shinken is installed in /usr/local/shinken
 +--------------------------------------------------------------------------------
 | Install check_mem
 +--------------------------------------------------------------------------------
  > Downloading check_mem
  > Extracting archive
  > Installing plugin


 # ./install -p manubulon
  > Found installation parameters
  --> ETC=/usr/local/shinken/etc
  --> VAR=/usr/local/shinken/var
  --> LIBEXEC=/usr/local/shinken/libexec
  --> TARGET=/usr/local/shinken
  > checking if shinken is installed in /usr/local/shinken
 +--------------------------------------------------------------------------------
 | Install manubulon plugins
 +--------------------------------------------------------------------------------
  > Installing prerequisites
  > Getting manubulon archive
  > Extract archive content
  > Relocate libs
  => Processing /tmp/nagios_plugins/check_snmp_boostedge.pl
  => Processing /tmp/nagios_plugins/check_snmp_cpfw.pl
  => Processing /tmp/nagios_plugins/check_snmp_css_main.pl
  => Processing /tmp/nagios_plugins/check_snmp_css.pl
  => Processing /tmp/nagios_plugins/check_snmp_env.pl
  => Processing /tmp/nagios_plugins/check_snmp_int.pl
  => Processing /tmp/nagios_plugins/check_snmp_linkproof_nhr.pl
  => Processing /tmp/nagios_plugins/check_snmp_load.pl
  => Processing /tmp/nagios_plugins/check_snmp_mem.pl
  => Processing /tmp/nagios_plugins/check_snmp_nsbox.pl
  => Processing /tmp/nagios_plugins/check_snmp_process.pl
  => Processing /tmp/nagios_plugins/check_snmp_storage.pl
  => Processing /tmp/nagios_plugins/check_snmp_vrrp.pl
  => Processing /tmp/nagios_plugins/check_snmp_win.pl
  => Installing
  > Found installation parameters
  --> ETC=/usr/local/shinken/etc
  --> VAR=/usr/local/shinken/var
  --> LIBEXEC=/usr/local/shinken/libexec
  --> TARGET=/usr/local/shinken
  > checking if shinken is installed in /usr/local/shinken

 # ./install -p check_netint
  > Found installation parameters
  --> ETC=/usr/local/shinken/etc
  --> VAR=/usr/local/shinken/var
  --> LIBEXEC=/usr/local/shinken/libexec
  --> TARGET=/usr/local/shinken
  > checking if shinken is installed in /usr/local/shinken
 +--------------------------------------------------------------------------------
 | Install install_check_netint
 +--------------------------------------------------------------------------------
  > Installing pre-requisites.
  > Downloading check_netint
  > install check_netint

 # ./install -a pnp4nagios

  > Found installation parameters
  --> ETC=/usr/local/shinken/etc
  --> VAR=/usr/local/shinken/var
  --> LIBEXEC=/usr/local/shinken/libexec
  --> TARGET=/usr/local/shinken
  > checking if shinken is installed in /usr/local/shinken
 +--------------------------------------------------------------------------------
 | Install pnp4nagios addon
 +--------------------------------------------------------------------------------
  > Found installation parameters
  --> ETC=/usr/local/shinken/etc
  --> VAR=/usr/local/shinken/var
  --> LIBEXEC=/usr/local/shinken/libexec
  --> TARGET=/usr/local/shinken
  > Installing prerequisites
  > Getting pnp4nagios archive
  > Extracting archive
  > Configuring source tree
  > Building ....
  > Installing
  > Fix htpasswd.users path
  > Enable npcd startup
  > Enable npcdmod
  > using ip address: 192.168.11.114
  > Starting npcd

  5. fix the installation:

    many parts of the installation are broken, so for basic operation here are some fixes:

    • create a common secret key (for pnp4nagios and npcd communication):

        cat /dev/urandom | tr -dc _A-Z-a-z-0-9 | head -c${1:-32} > /usr/local/pnp4nagios/etc/secret.key
  chown shinken:shinken /usr/local/pnp4nagios/etc/secret.key

    • fix pnp4nagios to use the common key file by looking at /usr/local/pnp4nagios/etc/process_perfdata.cfg: disable KEY = should_be_changed and enable KEY_FILE = /usr/local/pnp4nagios/etc/secret.key (see this example how it should look like):

       ...
 # enables or disables encryption. It is strongly
 # advised to not disable encryption. Anybody will be
 # able to inject packages to your worker.
 # Encryption is enabled by default and you have to
 # explicitly disable it.
 # When using encryption, you will either have to
 # specify a shared password with KEY = ...
 # Default is 1.
 #
 ENCRYPTION = 1

 # A shared password which will be used for
 # encryption of data pakets. Should be at least 8
 # bytes long. Maximum length is 32 characters.
 #
 #KEY = should_be_changed

 # The shared password will be read from this file.
 # Use either key or keyfile. Only the first 32
 # characters will be used.
 KEY_FILE = /usr/local/pnp4nagios/etc/secret.key

    • finally, restart the services:

        /etc/init.d/shinken restart
  /etc/init.d/npcd restart

    note: cpu/load/memory/NetworkUsage all fail for localhost at my machine but i get ping latency statistics and RRD graphs (it says: Cpu UNKNOWN36m 2s (Service Check Timed Out))

  6. finally, open these two pages in your browser:

    note: it could take 2minutes for pnp4nagios to generate RRD graphics

  7. see the logs:

     tail -f  /usr/local/shinken/var/*.log

    note: in case you want to debug npcd, see [[shinken_1.2.4_on_ubuntu_desktop_12.10/#index1h2]]

  8. since monitoring localhost is not enough:

    go to /usr/local/shinken/etc/hosts and add a file like wiki.serverkommune.de.cfg:

     # cat wiki.serverkommune.de.cfg

 define host{
 host_name                      wiki.serverkommune.de
 contact_groups                 admins
 address                        wiki.serverkommune.de
 use                            http
 }

    afterwards restart shinken:

     /etc/init.d/shinken restart

  9. security: change the admin user password:

     cd /usr/local/shinken/etc
 htpasswd htpasswd.users admin

hacking shinken

when i select a server which i do monitor, like wiki.serverkommune.de, there is the ‘Graphics’ tab which says:

 Oh snap! No graphs available!

i tried to debug this to no avail!

this string seems to be references from: shinken/webui/plugins/eltdetail/views/eltdetail.tpl

 %uris = app.get_graph_uris(elt, graphstart, graphend)
 ...
 <div class="font-red"><strong>Oh snap!</strong> No graphs available!</div>

so i tried to find references to get_graph_uris:

 shinken/modules/webui_broker/webui_broker.py:    def get_graph_uris(self, elt, graphstart, graphend, source = 'detail'):
 shinken/modules/webui_broker/webui_broker.py:                f = getattr(mod, 'get_graph_uris', None)
 shinken/modules/graphite_ui.py:    def get_graph_uris(self, elt, graphstart, graphend, source = 'detail'):
 shinken/modules/pnp_ui.py:    def get_graph_uris(self, elt, graphstart, graphend, source = 'detail'):

according to the devs this page should work: http://192.168.11.114/pnp4nagios (for me it is an empty page)

because of the fact that there were no graphics i started looking at pnp4nagios and found npcd [Nagios Performance Data C Daemon]:

 /etc/init.d/npcd status
 npcd (pid 994) is running...

a look at the task

 ps aux | grep npcd
 shinken    994  0.0  0.2  90776  1028 ?        S    02:41   0:00 /usr/local/pnp4nagios/bin/npcd -d -f /usr/local/pnp4nagios/etc/npcd.cfg

i’ve played with various values in the configuration file:

  • log_level
  • /usr/local/pnp4nagios/libexec/process_perfdata.pl

but it seems that the npcd service cleares the perfdata_spool_dir = /usr/local/pnp4nagios/var/spool/

the error must be somewhere in there!

a closer look at /usr/local/pnp4nagios/libexec/process_perfdata.pl:

  • it seems that: /usr/local/pnp4nagios/etc/rra.cfg does not exist

  • however, /usr/local/pnp4nagios/etc/rra.cfg-sample does

  • /usr/local/pnp4nagios/etc/secret.key is not there either

  • /usr/local/pnp4nagios/var/perfdata exists and contains files:

    ls -la  /usr/local/pnp4nagios/var/perfdata/serverkommune.de/
total 1912
drwxrwxr-x  2 shinken shinken   4096 Feb 25 03:40 .
drwxr-xr-x 13 shinken shinken   4096 Feb 20 08:54 ..
-rw-rw-r--  1 shinken shinken 768224 Feb 25 03:40 Http.rrd
-rw-rw-r--  1 shinken shinken 768224 Feb 25 03:39 Https.rrd
-rw-rw-r--  1 shinken shinken   2475 Feb 25 03:39 Https.xml
-rw-rw-r--  1 shinken shinken   2464 Feb 25 03:40 Http.xml
-rw-rw-r--  1 shinken shinken 384952 Feb 25 03:37 smtp.rrd
-rw-rw-r--  1 shinken shinken   1815 Feb 25 03:37 smtp.xml
-rw-rw-r--  1 shinken shinken      0 Feb 21 09:34 smtp.xml.2972

  • looking at the log /usr/local/pnp4nagios/var/perfdata.log

    less /usr/local/pnp4nagios/var/perfdata.log
2013-02-21 09:26:57 [2856] [0] RRDs::update /usr/local/pnp4nagios/var/perfdata/serverkommune.de/Http.rrd 1361459985:0.631224:1817
2013-02-21 09:26:57 [2856] [0] RRDs::update ERROR /usr/local/pnp4nagios/var/perfdata/serverkommune.de/Http.rrd: illegal attempt to update using time 1361459985 when last update time is 1361460284 (minimum one second step)
2013-02-25 02:42:16 [997] [0] *** TIMEOUT: Timeout after 15 secs. ***
2013-02-25 02:42:39 [997] [0] *** TIMEOUT: Deleting current file to avoid NPCD loops
2013-02-25 02:42:39 [997] [0] *** TIMEOUT: Please check your process_perfdata.cfg
2013-02-25 02:42:39 [997] [0] *** TIMEOUT: Could not delete /usr/local/pnp4nagios/var/spool//perfdata.1361460886-PID-997:No such file or directory
2013-02-25 02:42:39 [997] [0] *** Timeout while processing Host: ".pnp-internal" Service: "runtime"
2013-02-25 02:42:39 [997] [0] *** process_perfdata.pl terminated on signal ALRM

  • looking at /usr/local/pnp4nagios/etc/process_perfdata.cfg it seems that a password was missing and the secret file wasn’t set either

    # enables or disables encryption. It is strongly
# advised to not disable encryption. Anybody will be
# able to inject packages to your worker.
# Encryption is enabled by default and you have to
# explicitly disable it.
# When using encryption, you will either have to
# specify a shared password with KEY = ...
# Default is 1.
#
ENCRYPTION = 1

# A shared password which will be used for
# encryption of data pakets. Should be at least 8
# bytes long. Maximum length is 32 characters.
#
KEY = should_be_changed

# The shared password will be read from this file.
# Use either key or keyfile. Only the first 32
# characters will be used.
# KEY_FILE = /usr/local/pnp4nagios/etc/secret.key

  • what about pnp4nagios vhost? apache seems to be running:

    /etc/init.d/apache2 status
Apache2 is running (pid 1459).

  • /var/log/apache2/error.log

    tail -f  /var/log/apache2/error.log
[Thu Feb 21 09:28:20 2013] [error] [client 192.168.11.104] File does not exist: /var/www/favicon.ico
[Mon Feb 25 02:43:16 2013] [notice] Apache/2.2.22 (Ubuntu) mod_fcgid/2.3.7 PHP/5.4.6-1ubuntu1.1 configured -- resuming normal operations
[Mon Feb 25 02:44:09 2013] [error] [client 192.168.11.104] File does not exist: /var/www/favicon.ico
[Mon Feb 25 02:49:33 2013] [error] [client 192.168.11.104] user admin: authentication failure for "/pnp4nagios/index.php/image": Password Mismatch, referer: http://192.168.11.114:7767/all

  • the secret key:

     echo "abcdefghijklmnopqrstuvwxyz0000000000000000000" > /usr/local/pnp4nagios/etc/secret.key
 chown shinken:shinken /usr/local/pnp4nagios/etc/secret.key

  • restarting shinken

     /etc/init.d/shinken restart
 /etc/init.d/npcd restart

  • so what can i do now? visit #pnp4nagios@irc.freenode.net

       (14:33) <   qknight> when i type: http://192.168.11.114/pnp4nagios/graph?host=blog.lastlog.de i get a total empty page (no html source code)
   (14:34) <   qknight> http://blog.lastlog.de/posts/shinken_1.2.4_on_ubuntu_12.10_LTS/
   (14:34) <   qknight> and i don't know where to start debugging the setup
   (14:35) < _pitchfor> pnp4nagios verison?
   (14:35) < _pitchfor> PHP Version?
   (14:38) < _pitchfor> you site points to the old 0.4.x docs
   (14:38) < _pitchfor> qknight:  so which version of pnp4nagios do you use?
   (14:39) <   qknight> _pitchfork_: npcd 0.6.17 - $Revision: 637 $
   (14:40) < _pitchfor> and why do you link to the 0.4.x docs?
   (14:40) < _pitchfor> anyway
   (14:40) < _pitchfor> which PHP version do you use?
   (14:40) <   qknight> pnp4nagios-0.6.17
   (14:41) < _pitchfor> PHP not PNP
   (14:41) < _pitchfor> http://docs.pnp4nagios.org/pnp-0.6/dwnld#changelog
   (14:41) <   qknight> PHP Version => 5.4.6-1ubuntu1.1
   (14:41) < _pitchfor> http://docs.pnp4nagios.org/pnp-0.6/dwnld#changelog
   (14:41) < _pitchfor> fixed with pnp4nagios 0.6.18
   (14:41) < _pitchfor> happy updating ;)
   (14:42) <   qknight> _pitchfork_: what is fixed with that new version?
   (14:42) < _pitchfor> http://docs.pnp4nagios.org/pnp-0.6/dwnld#changelog
   (14:44) <   qknight> _pitchfork_: sorry?
   (14:44) <   qknight> i will try to update now
   (14:44) < _pitchfor> qknight:  -> Bugfix: Blank screen on PHP 5.4 fixed
   (14:44) <   qknight> oh, right
   (14:44) <   qknight> thanks!

  • finally the fix (very simple one indeed): in the installer of shinken change shinken-1.2.4/install.d/shinken.conf:

      install.d/shinken.conf -> export PNPRELEASE="17" # must be updated to 18 instead!

note: see bugfix in [6] for the 2.18 release

Bugfix: Blank screen on PHP 5.4 fixed

shinken review

packaging

summary:

  • i tried third party packages for shinken but it failed horribly (as usually when i do something with third party stuff on ubuntu/debian).
  • source deployment seems to be a good idea for the time being - until someone packages it for ubuntu

anyway, when being used to nixpkgs this seems to horribly wrong!!1!

usability

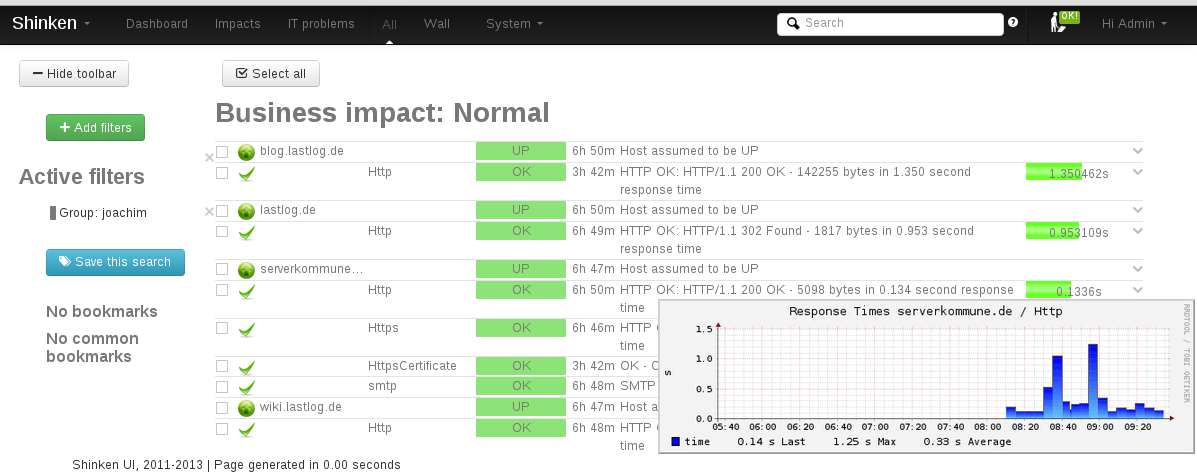

this screenshot shows the shinken UI:

but:

  • the layout (picture above) is not structured in a clean/obvious way, i often need several moments to realise which result belongs to which server
  • when hoovering the mouse over a latency meassure (as shown in the picture above) it sometimes does weird things when the page is being reset
  • expanding several hosts makes the lower part of the page unusable as pageresets frequently reset the view to the top
  • sometimes hoovering does not work so there won’t be any graph
  • there is no indicator when the data was refreshed the last time, so once i thought everything is alright even though it was not!
  • when being in a host view i can’t use the ‘Graphs’ tab directly (it would show ‘Oh snap! No graphs available!’) but instead i have to select a service in the ‘Impacts’ tab first. why is this ‘Graphs’ tab there then?!
  • i could’t get CPU/Load/Memory check for localhost working

i tested all this both with ff and chrome. in general i like shinken and maybe someone benefits from this guide? how knows ;-)

future steps

  • using NRPE (Nagios Remote Plugin Executor) to monitor remote machines. see [7][8][9]
  • put shinken behind apache, thus make the service use 80/443, see [10]
  • consider using thruk, see [11]

summary

i’ve wasted about 3 days debugging shinken for ubuntu desktop 12.10. anyway, i need this setup as i want to run it on a raspberry pi! i like the documentation on the webpage and also the installer and installation steps is quite usable.

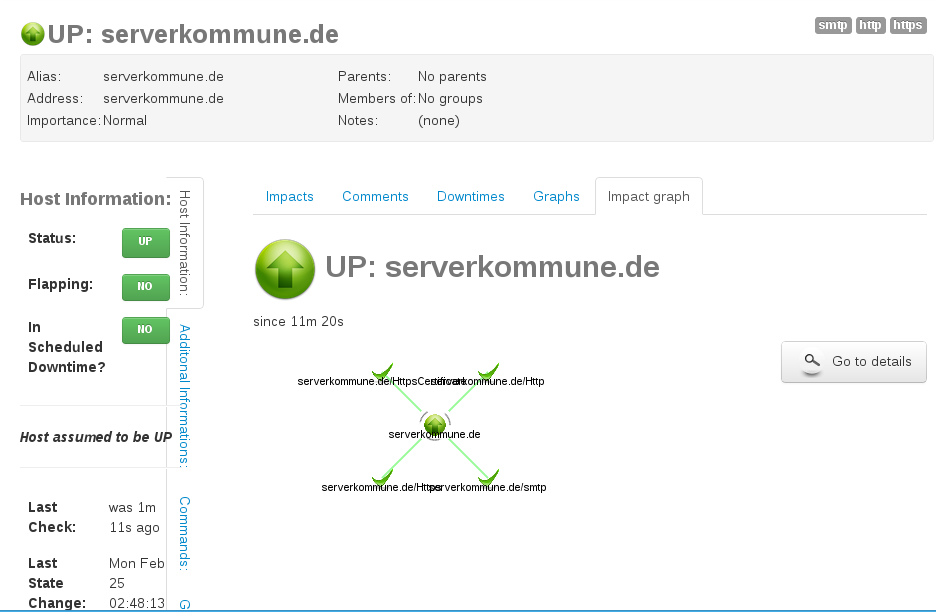

i really love the impact graph. can’t wait to see it in our more complex setup here!

consider using Centos/RHEL

hvad@shinken#irc.freenode.net recommended to use Centos/RHEL 6.x by using the EPEL repository. since i want to run shinken on the raspberry pi this is no option right now ;-P

thanks for the help to hvad/Issif/oliv-

#links * [1] http://www.shinken-monitoring.org/wiki/shinken_10min_start#minute_shinken_installation_guide * [2] https://github.com/naparuba/shinken/issues/735 * [3] https://forums.aws.amazon.com/thread.jspa?messageID=386426 * [4] http://docs.pnp4nagios.org/de/pnp-0.4/verify * [5] http://www.thomas-krenn.com/de/wiki/Icinga_Graphen_mit_PNP_unter_Debian_6.0_Squeeze * [6] http://docs.pnp4nagios.org/pnp-0.6/dwnld#changelog * [7] http://www.nagios-wiki.de/nagios/howtos/nrpe * [8] http://www.nsclient.org/nscp/wiki/doc/usage/nagios/nrpe * [9] http://blog.admin-linux.org/supervision/howto-install-nrpe-sous-ubuntu-server-via-les-sources * [10] http://www.shinken-monitoring.org/forum/index.php?topic=192.0 * [11] http://www.thruk.org/documentation.html

article source
