tour of nix

14 nov 2015

motivation

lately i’ve been working with emscripten 1.29.10 and i compiled nix-instantiate from c++ to javascript. why?

nix is a tricky programming language to get into. the motivation for ‘a tour of nix’ was to make it easier for new developers to get into nix. compiling nix-instantiate and later nix-repl to javascript might be enablers for new technologies like:

  • webbased editor with nix-syntax autocompletion, directly from the language itself by using nix-repl
  • extend the nix documentation with interactive API usage examples (much like ‘a tour of go’ and godocs)
  • use nix to deploy javascript

while the former points are all interesting targets in itself, this posting will focus on ‘a tour of nix’ and ‘emscripten’. A tour of Nix is a html5/javascript based tutorial about the nix programming language.

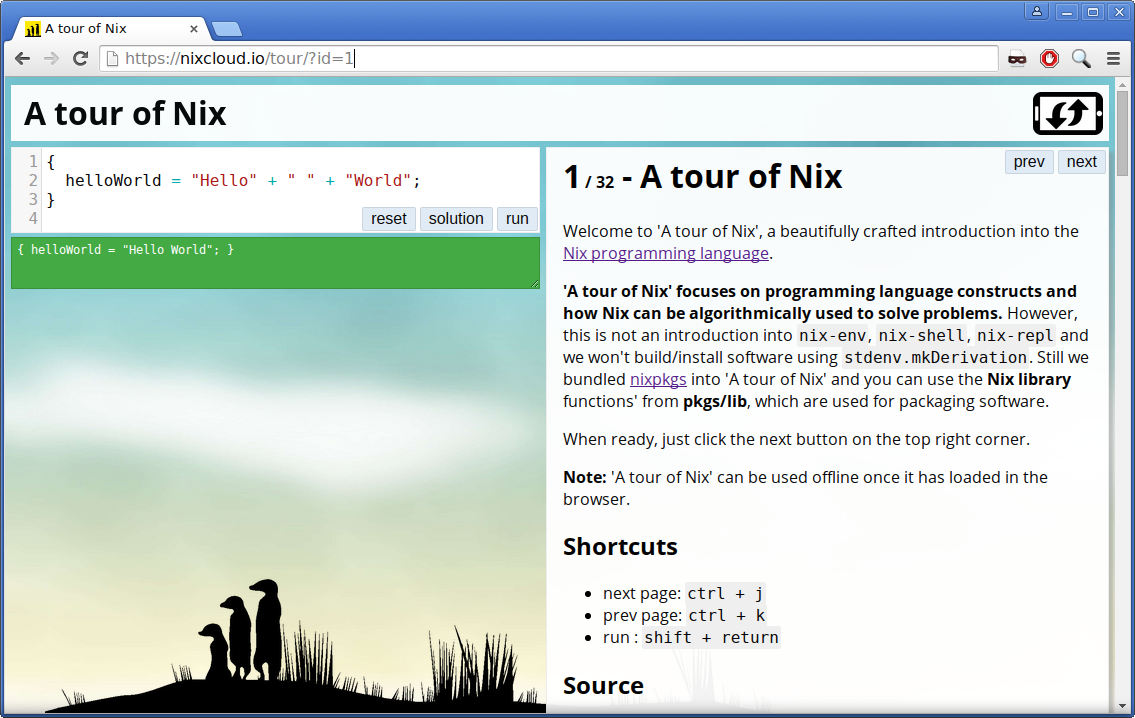

the 'A touf of nix'-webpage

implementation

nix-instantiate is a very good candidate among the various nix-tools. since emscripten emulates a complete POSIX-filesystem we

  1. clone nix/nixpkgs

    git clone https://github.com/nixos/nix
git clone https://github.com/nixos/nixpkgs

    ‘nix’ contains nix-instantiate which we want to compile to javascript while ‘nixpkgs’ will be bundled with nix-instantiate.js so we can use the lib functions.

  2. development environment

    to play with the code, run:

    nix-shell --pure -p vim emscripten nodejs autoconf automake pkgconfig perlPackages.DBDSQLite perl perlPackages.WWWCurl  bzip2 zlib libtool bison flex curl sqlite git file

    note: we will be using llvm instead of gcc since emscripten is llvm only!

  3. learn about nix-instantiate dependencies

    ./dependencies.sh =nix-instantiate dependencies.jpg

    dependencies.sh lists the dependencies of the vanialla nix-instantiate

    the dependencies of nix-instantiate

    what had to be changed:

    • the build-system was dramatically changed to use:

      • only builds nix-instantiate (all other targets removed)
      • static linking for all libs (.a instead of .so)
      • O3, -g0

    • source code changes: libraries were removed from nix-instantiate

      • bzip2, curl, ssl, sqlite3, dl, z, m, crypto, gc
      • removed sigaction(..) code
      • libstore requirement from nix-instantiate was removed
      • various other changes to make nix compile and work in a browser

    • bundle (a bash script) was added to src/nix-instantiate

    to test emscripten a simple ‘hello world’ example was created.

  4. the build using ‘./bundle’

    emcc -g0 -O3 nix-instantiate.bc ../libexpr/libnixexpr.bc ../libstore/libnixstore.bc ../boost/format/libnixformat.bc ../libutil/libnixutil.bc ../libmain/libnixmain.bc \
  -o nix-instantiate.js \
  --preload-file nix/derivation.nix \
  --preload-file nixpkgs \
  --preload-file test.nix \
  -s NO_EXIT_RUNTIME=1 \ #important
  -s INVOKE_RUN=0 \ #important
  -s ALLOW_MEMORY_GROWTH=1 \ # importatnt!
  -s TOTAL_MEMORY=350777216 \ # could be less i suppose
  --pre-js pre-js.js \ # important for nix-instantiate (to remove the spinner)
  -s DISABLE_EXCEPTION_CATCHING=0 \ # important for nix-instantiate (when the expression creates an error)
  --llvm-lto 3

  5. after you executed ./bundle:

    you can test if everything went fine, if it built a new version of:

    • nix-instantiate.data
    • nix-instantiate.js
    • nix-instantiate.js.mem

  6. nix-instantiate.js usage

    index.html includes nix-instantiate.js and calls it every time we want to evaluate a nix expression

    <script type="text/javascript" charset="utf-8">
  ...
  var runNix = function() {
    var start = new Date().getTime();
    console.log("running runNix()");
    document.getElementById('runInfo').innerHTML = "computation in progress";
    document.getElementById('output').value = "";
    Module['print'] = function(text) {
      Module['return'] = text + '\n';
      document.getElementById('output').value += text;
      document.getElementById('runInfo').innerHTML = "";
      var end = new Date().getTime();
      var time = end - start;
      console.log('Execution time: ' + time + ' ms');
    };
    Module['printErr'] = function(text) {
      text = text.replace("[31;1m", "");
      text = text.replace("[1m", "");
      text = text.replace("[1m", "");
      text = text.replace("[0m","");
      text = text.replace("[0m","");
      text = text.replace("/test.nix","line");
      text = text.replace("/test.nix","line");
      text = text.replace("/test.nix","line");
      console.log(text);
      Module['return'] = text + '\n';
      document.getElementById('runInfo').innerHTML = "";
      document.getElementById('output').value += text;
    };
    var input_text = editor.getValue();
    FS.writeFile('/test.nix', input_text, {encoding: 'utf8'});
    Module['arguments'] = ['-I', 'nixpkgs=nixpkgs', '--eval', '--strict', '--show-trace', '/test.nix'];
    Module.callMain(Module['arguments'])
  };
</script>

    this is actually similar to calling nix-instantiate from the shell:

    nix-instantiate -I nixpkgs=nixpkgs/ --eval, --strict, --show-trace, /test.nix

    note: i want to point out that callMain was used over cwrap

  7. code optimization

    check your webserver has compression enabled!

    services.httpd = {
  enable = true;
  logPerVirtualHost = true;
  adminAddr="js@lastlog.de";
  hostName = "lastlog.de";
  extraModules = [
    { name = "php5"; path = "${pkgs.php}/modules/libphp5.so"; }
    { name = "deflate"; path = "${pkgs.apacheHttpd}/modules/mod_deflate.so"; }
  ];
  virtualHosts = [
    # nixcloud.io
    {
      hostName = "nixcloud.io";
      serverAliases = [ "nixcloud.io" "www.nixcloud.io" ];
      documentRoot = "/www/nixcloud.io/";
      extraConfig = ''
          RedirectMatch ^/$ /main/page
          <Directory "/www/nixcloud.io/main/">
            Options -Indexes
            AllowOverride None
            Require all granted
          </Directory>
          SetOutputFilter DEFLATE
      '';
    };
  ]
};

    this is how we at nixcloud set up mod_deflate for apache, which curiously is not a default option. this reduces the 30mb download to 6mb only!

  8. html5 specialities

    we got a working browser history, so you can use the ‘back’ and ‘forward’ buttons of your browser to navigate the page

     // implement browser forward and back button actions
 window.addEventListener("popstate", function(e) {
   var id = getURLParameter("id");
   var diff = id - current_question - 1;
   change_question_withoutHistoryChange(diff);
 });

 // update current question and modify the window.history
 var change_question = function(myinput) {
   change_question_withoutHistoryChange(myinput);
   window.history.pushState('', '',  window.location.pathname + '?id=' + (current_question + 1));
 }

documentation

conclusion

i especially wanted to thank aidanhs, the author of empython, for all his time with very valuable hints on how to address my problems.

happy nix-learning from paul and joachim! also thanks a lot for the irc support on emscripten from: irc.mozilla.org#emscripten!

article source
